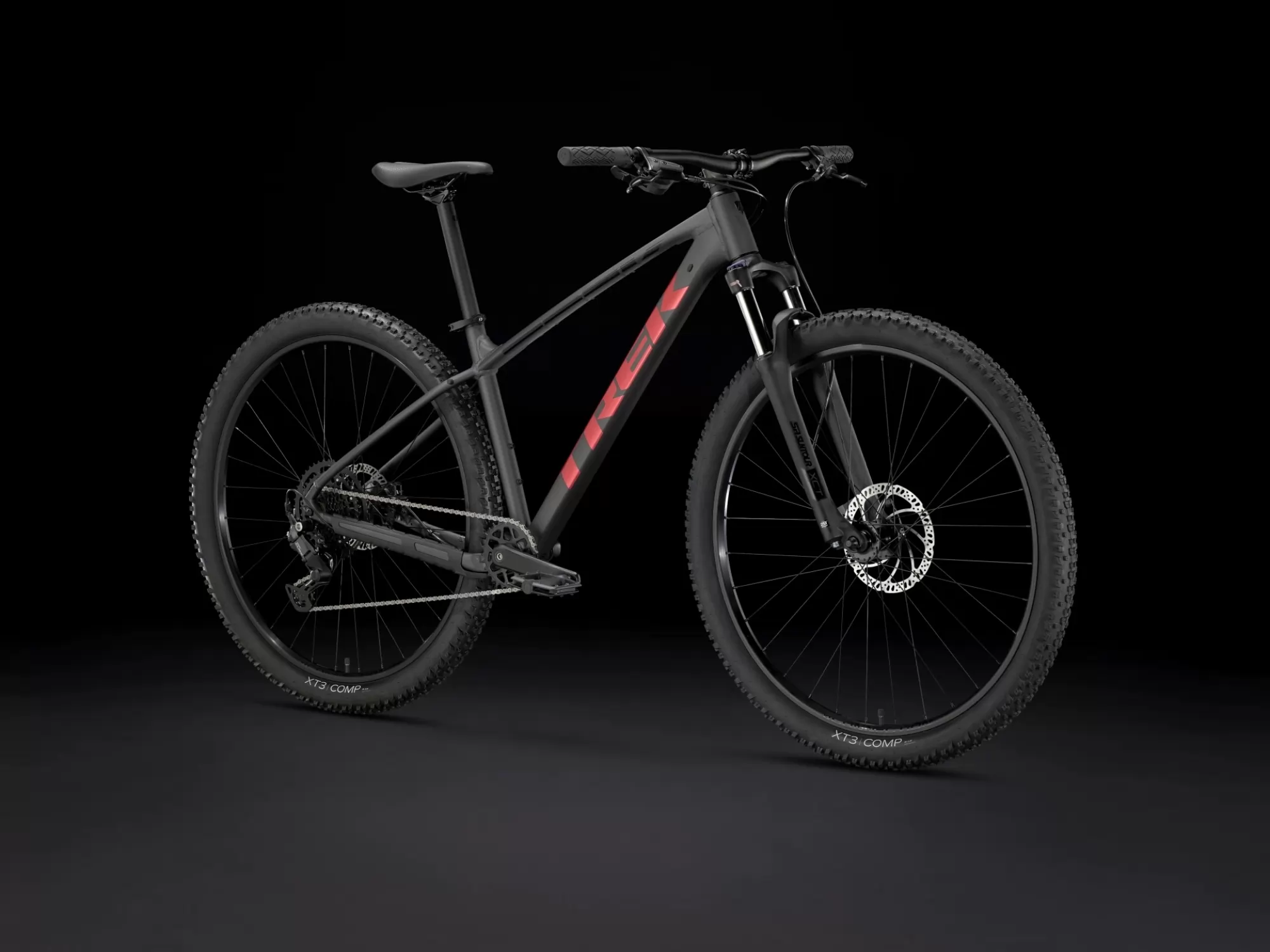

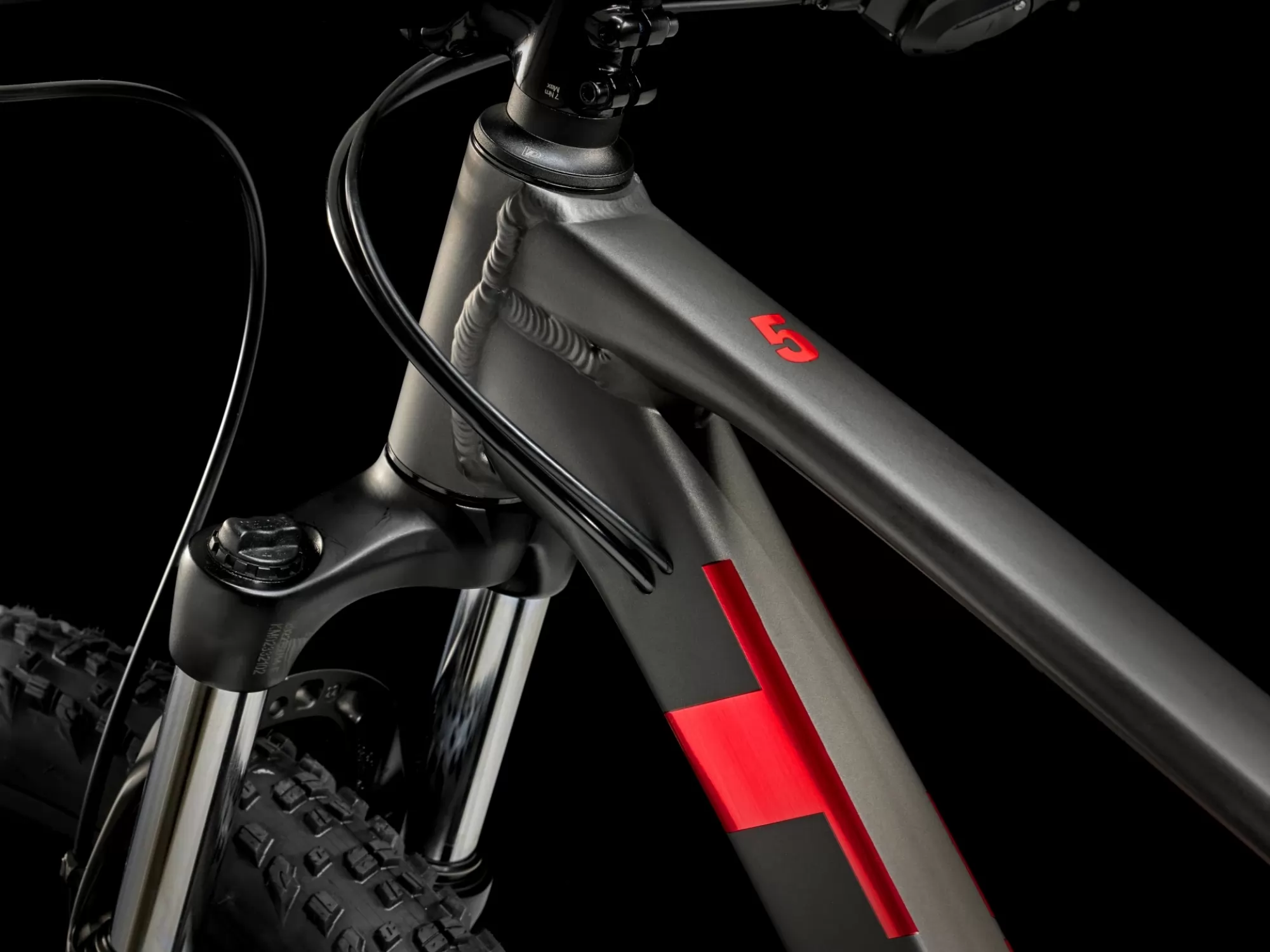

Rama: Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew (Size XS: curved top tube)

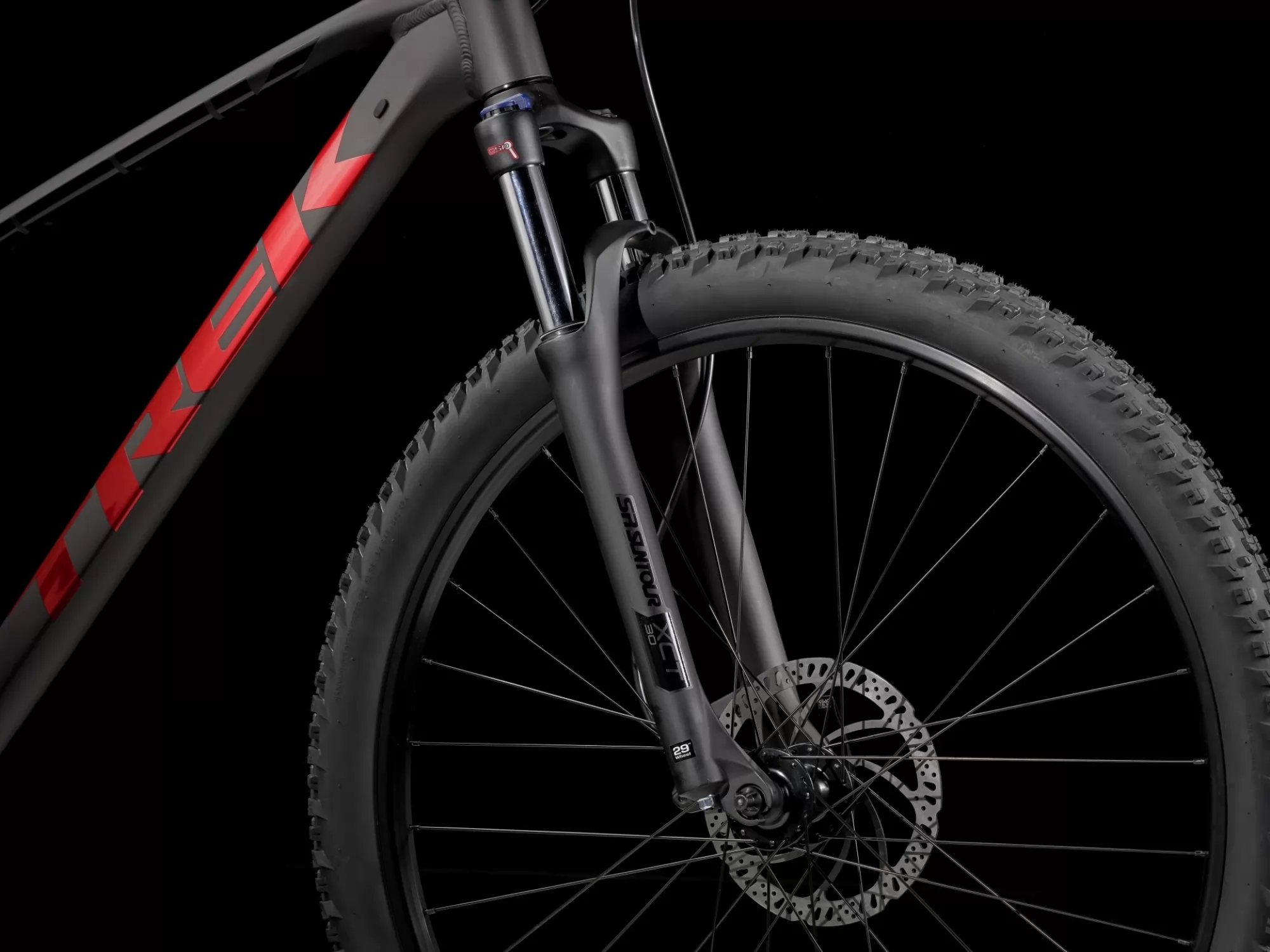

Prednja vilica: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29″ wheel, 100 mm QR, 100 mm travel (Size XS & S: 42 mm offset for 27.5″ wheel)
Prednja glavčina: Formula DC-20, alloy, 6-bolt, 5×100 mm QR
Zadnja glavčina: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm QR
Obruči: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Žbice: 14 g stainless steel

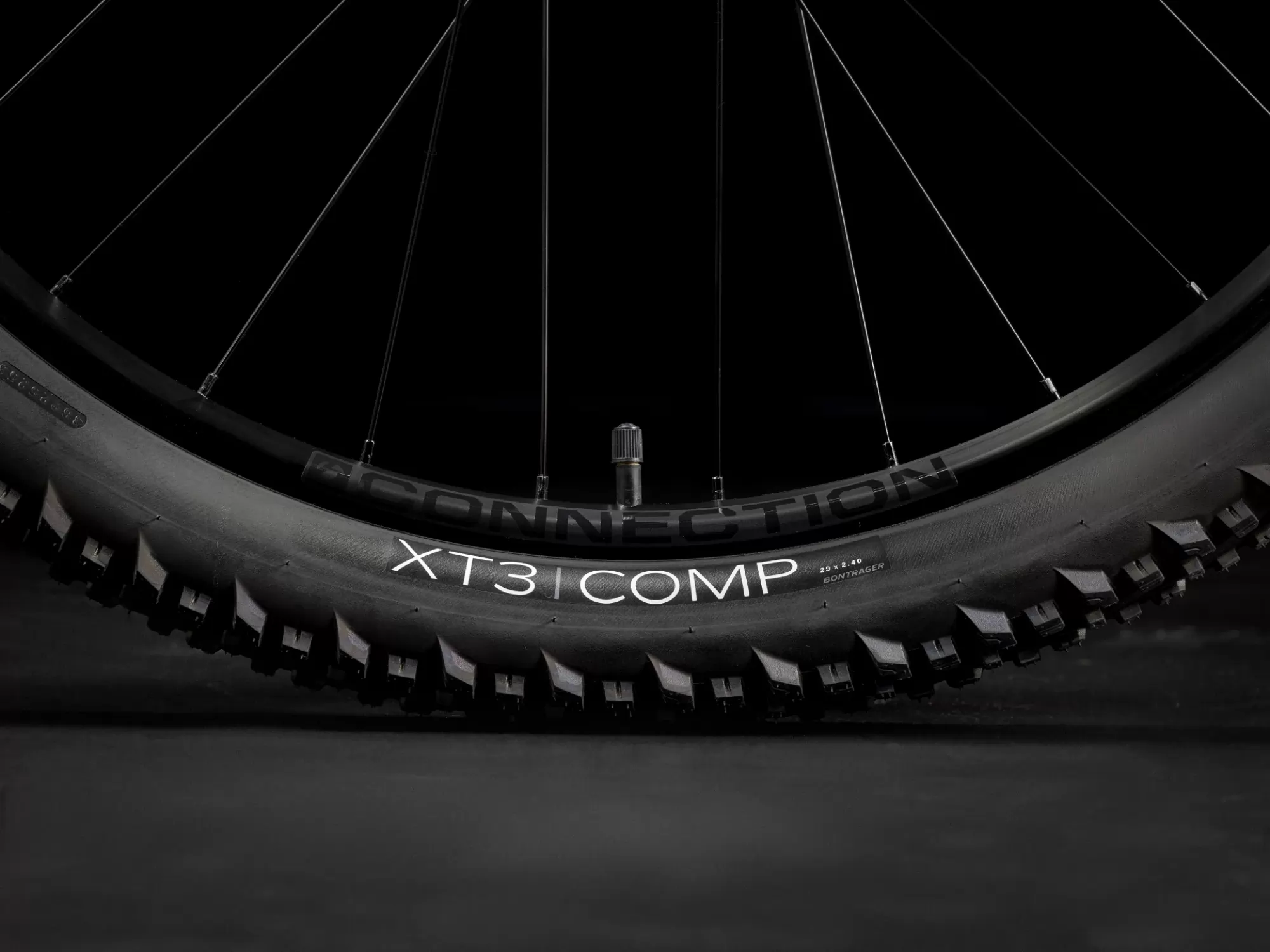

Gume: Bontrager XT3 Comp, wire bead, 30 tpi, 29×2.40″ (Size XS, S: 27.5×2.40″)
Ručice mjenjača: Shimano U4000, 9-speed
Zadnji mjenjač: Shimano CUES U4000

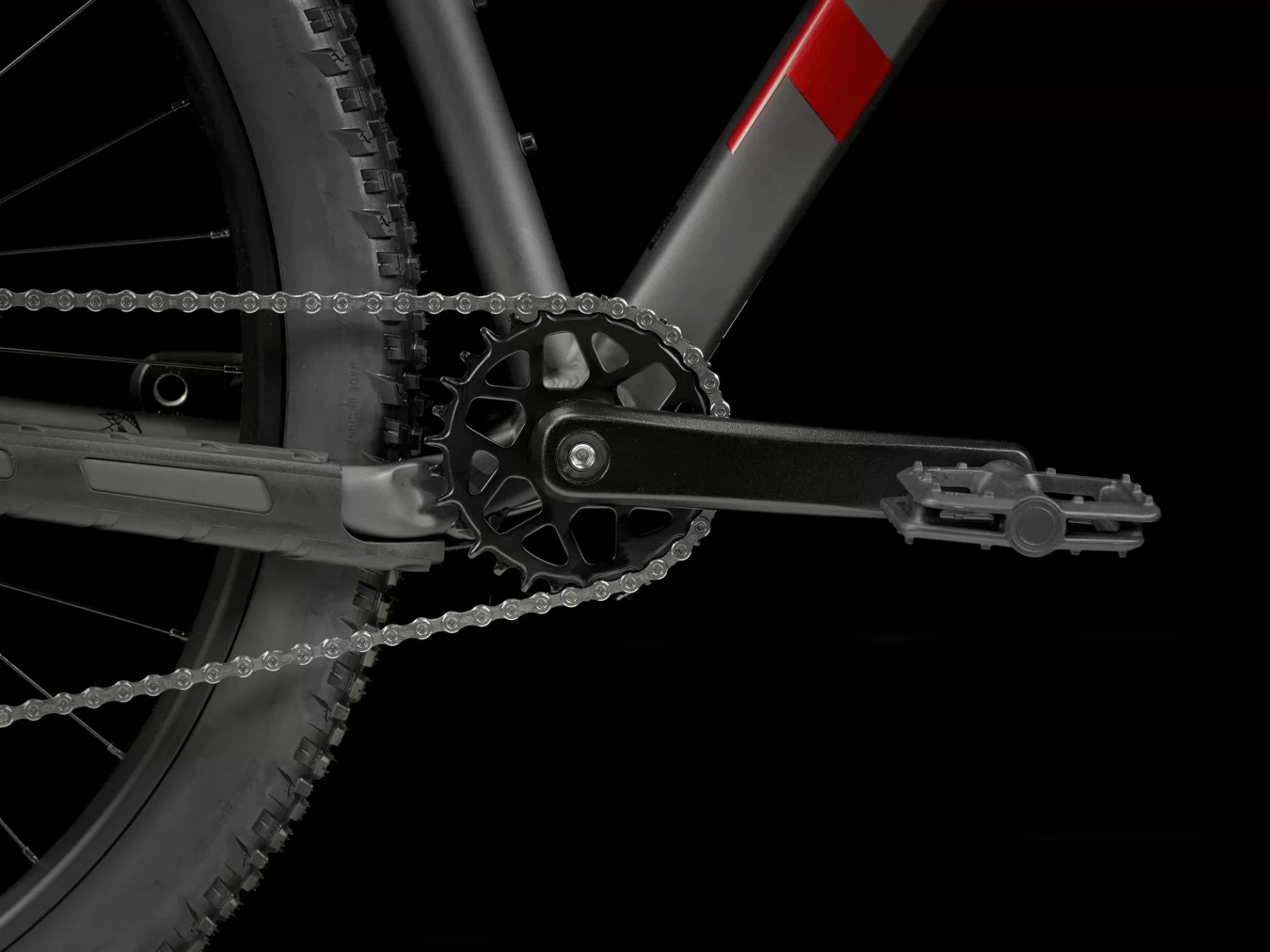

Pogon: Prowheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length (Size XS: 160 mm length)
Osovina pogona: VP BC73, 73 mm, threaded cartridge
Kazeta: Shimano LINKGLIDE LG300, 11-46, 9-speed
Lanac: Shimano LG500
Pedale: VP-536 nylon platform
Sjedalo: Bontrager Arvada, steel rails, 138 mm width
Cijev sjedala: Bontrager alloy, 31.6 mm, 12 mm offset
Kormilo: Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width (Size XS: 5 mm rise, 690 mm width; Size S: 15 mm rise, 720 mm width)
Navlake kormila: Bontrager XR Trail Comp, nylon lock-on
Lula kormila: Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree
Garnitura vilice: Semi-integrated, 1-1/8″

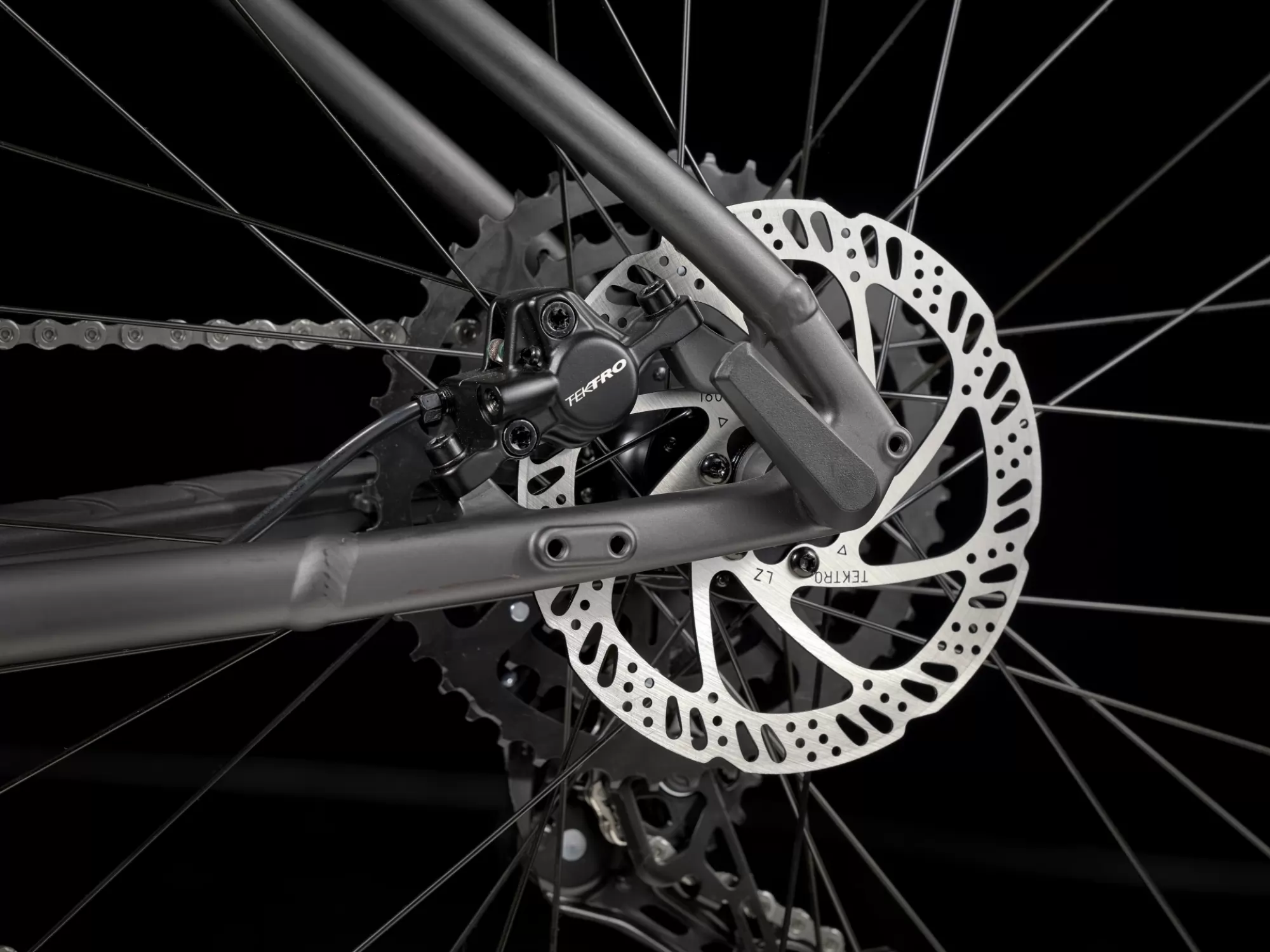

Kočnice: Tektro HD-M275 hydraulic disc
