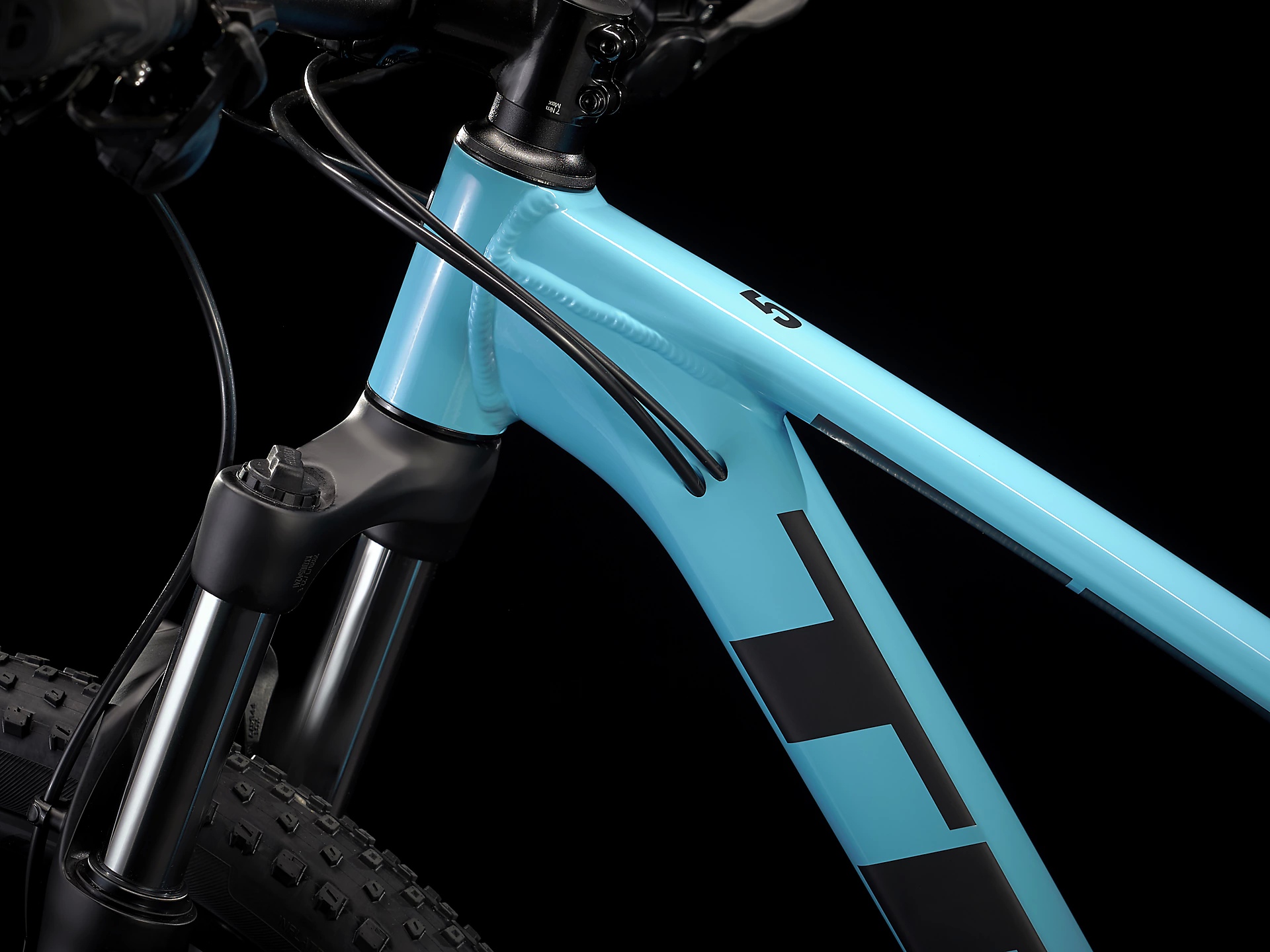

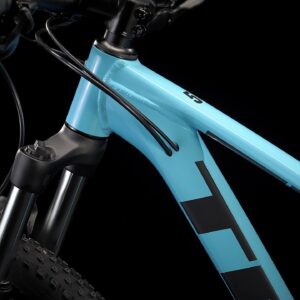

Rama: Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135×5 mm QR

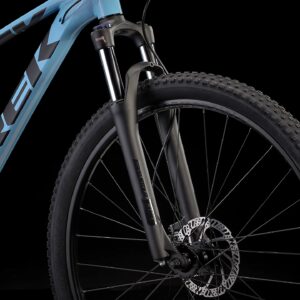

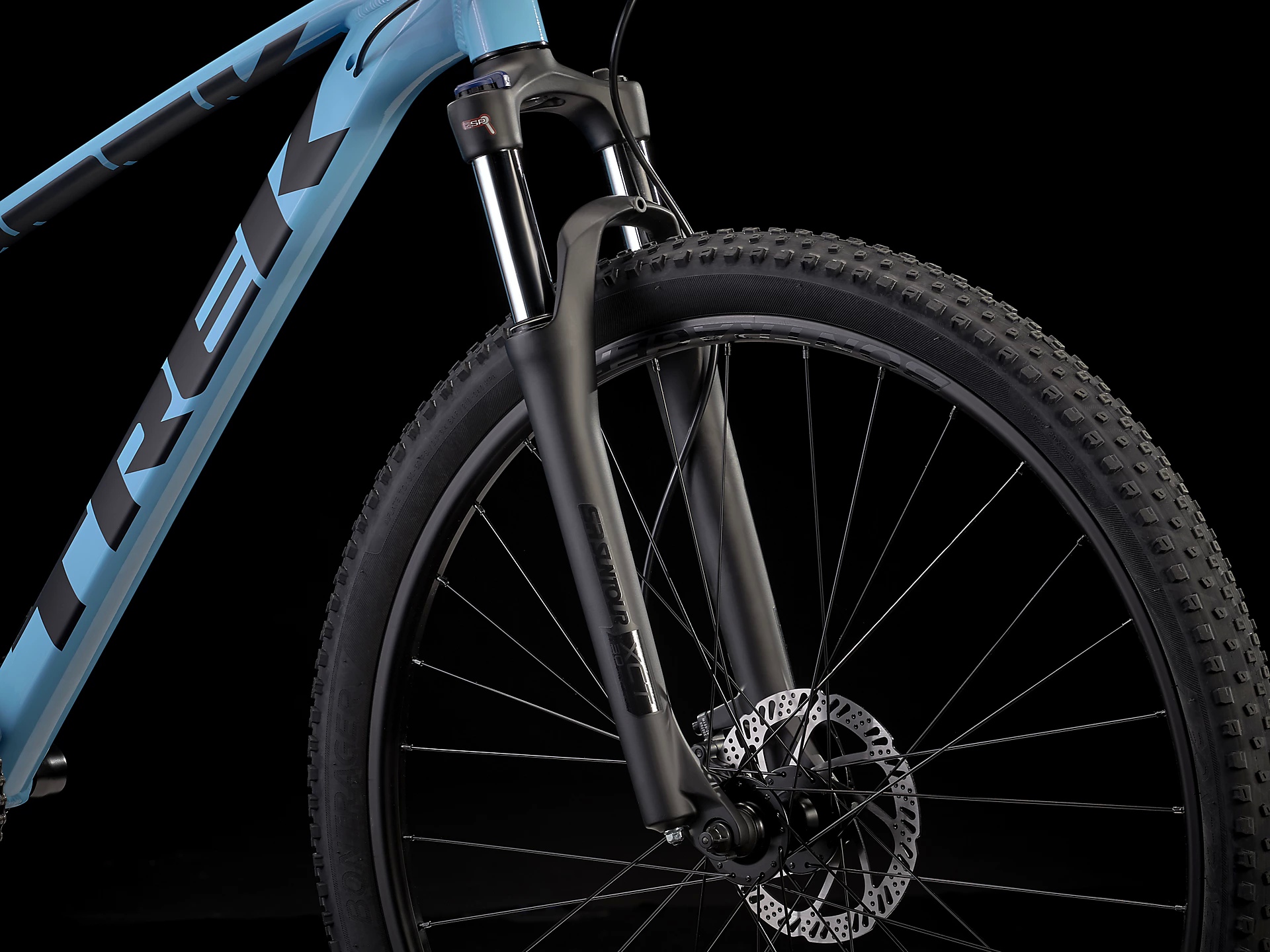

Prednja vilica: SR Suntour XCT 30, coil spring, preload, lockout, QR, 100 mm travel (Size XS: 80 mm)
Prednja glavčina: Formula DC-20, alloy, 6-bolt, 5×100 mm QR
Zadnja glavčina: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm QR
Obruči: Bontrager Connection, alloy, double-wall, 32-hole, 20 mm width, Schrader valve
Žbice: 14 g stainless steel

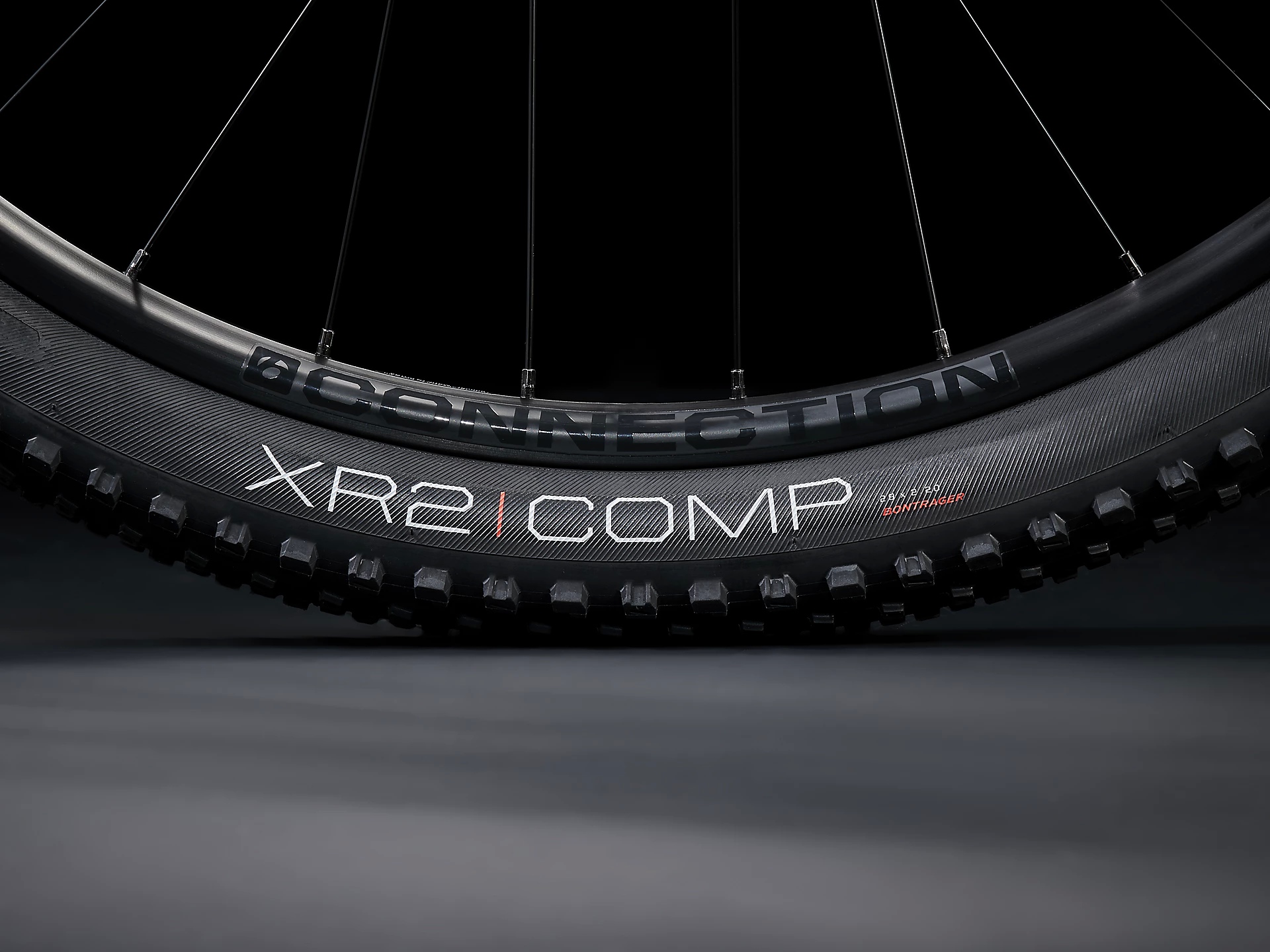

Gume: Bontrager XR2 Comp, wire bead, 30 tpi, 29×2.20″ (Size XXS: 26×2.20″ / Size XS: 27.5×2.20″)
Ručice mjenjača: Shimano Altus M315, 8-speed
Prednji mjenjač: Shimano Altus M315, 34.9 mm clamp, top swing, dual pull

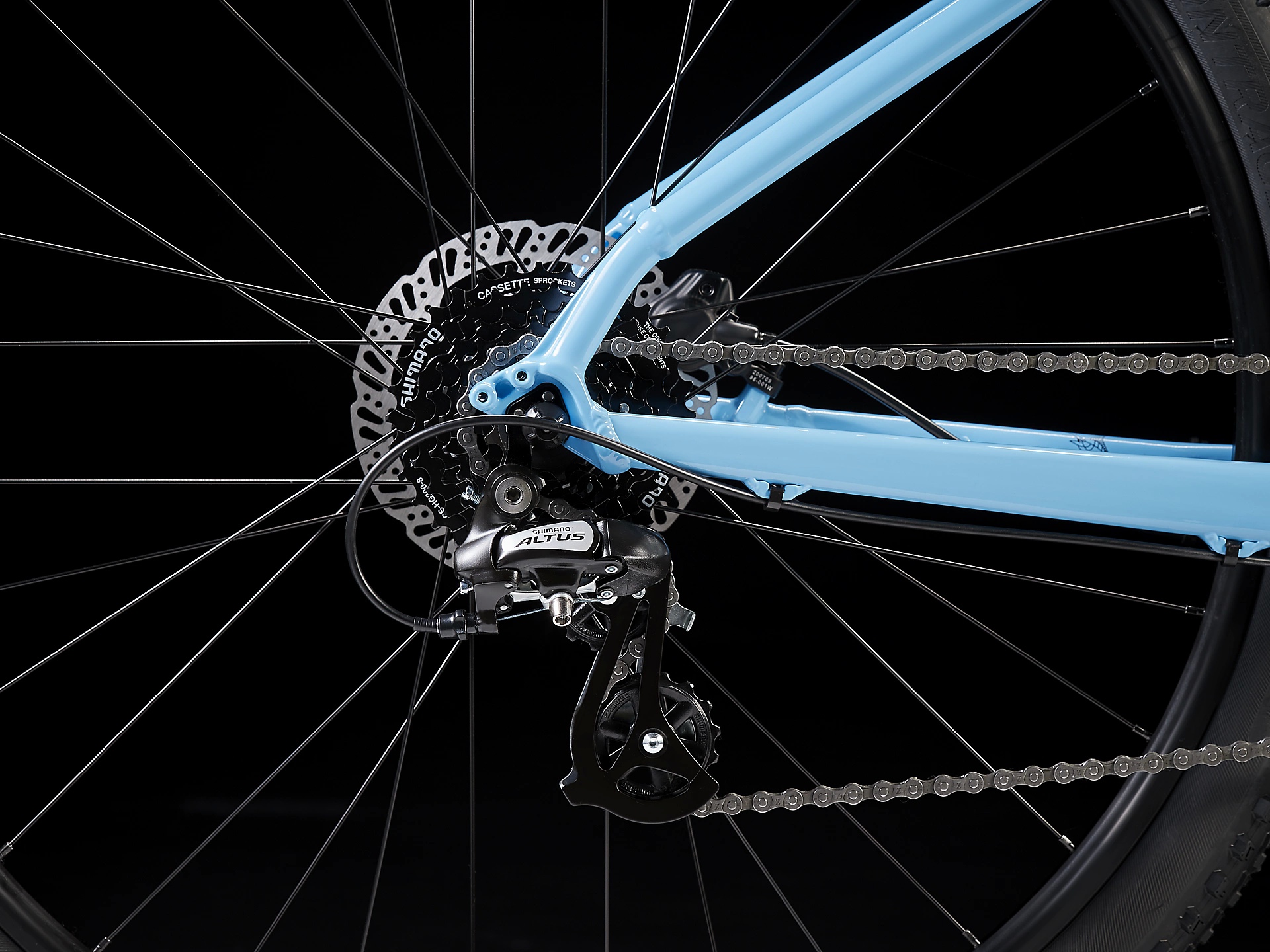

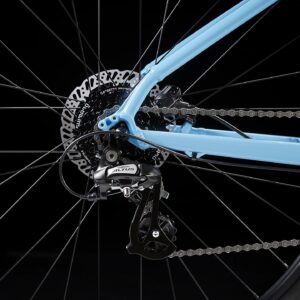

Zadnji mjenjač: Shimano Altus M310

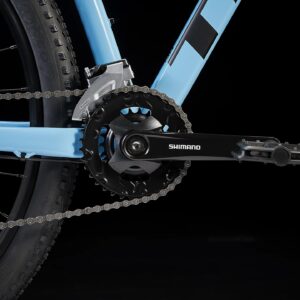

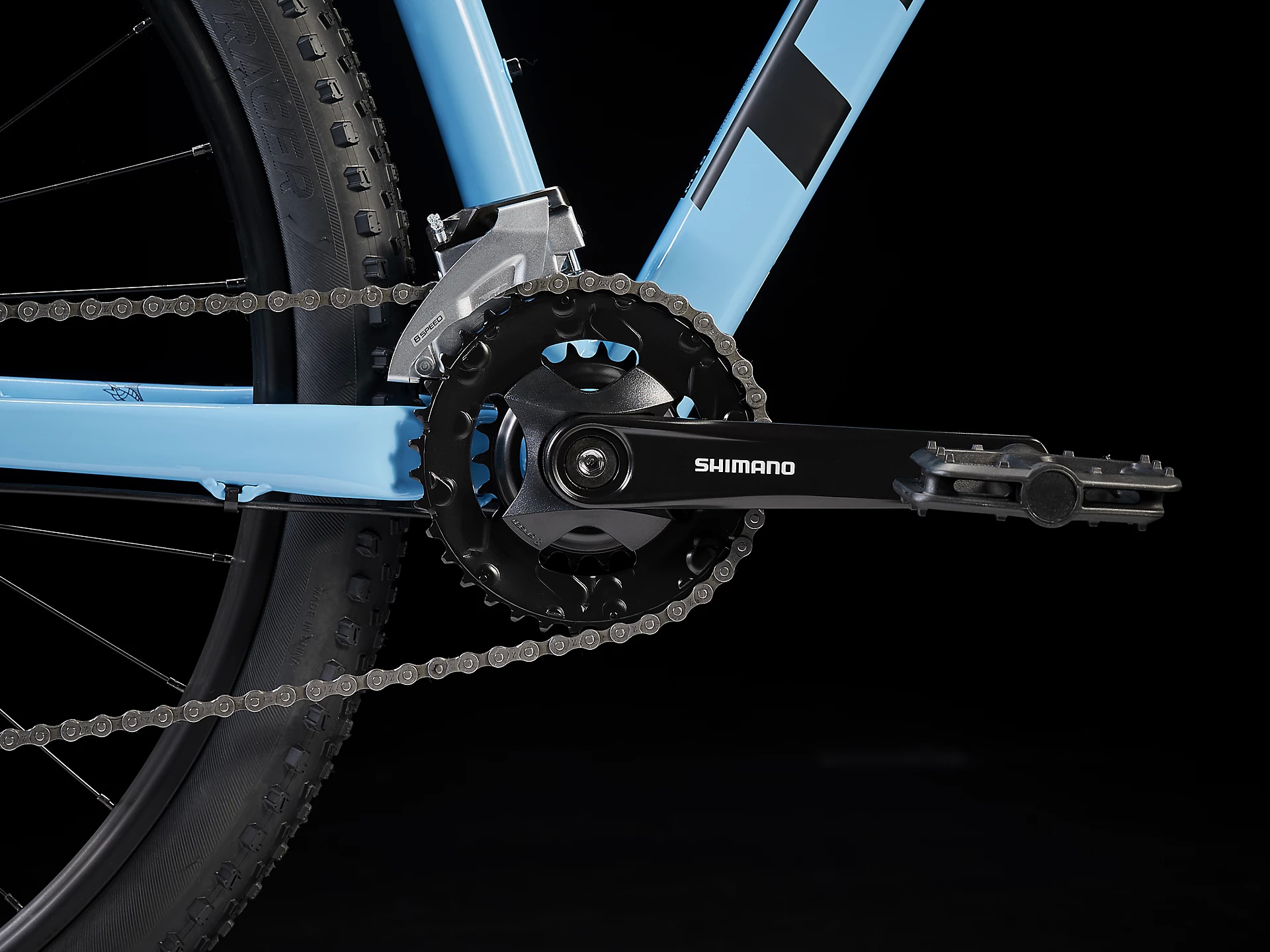

Pogon: Shimano M315, 36/22
Osovina pogona: VP BC73, 73 mm, threaded cartridge
Kazeta: Shimano 8-speed, 12-32T
Lanac: KMC Z8.3, 8 speed
Pedale: VP-536 nylon platform

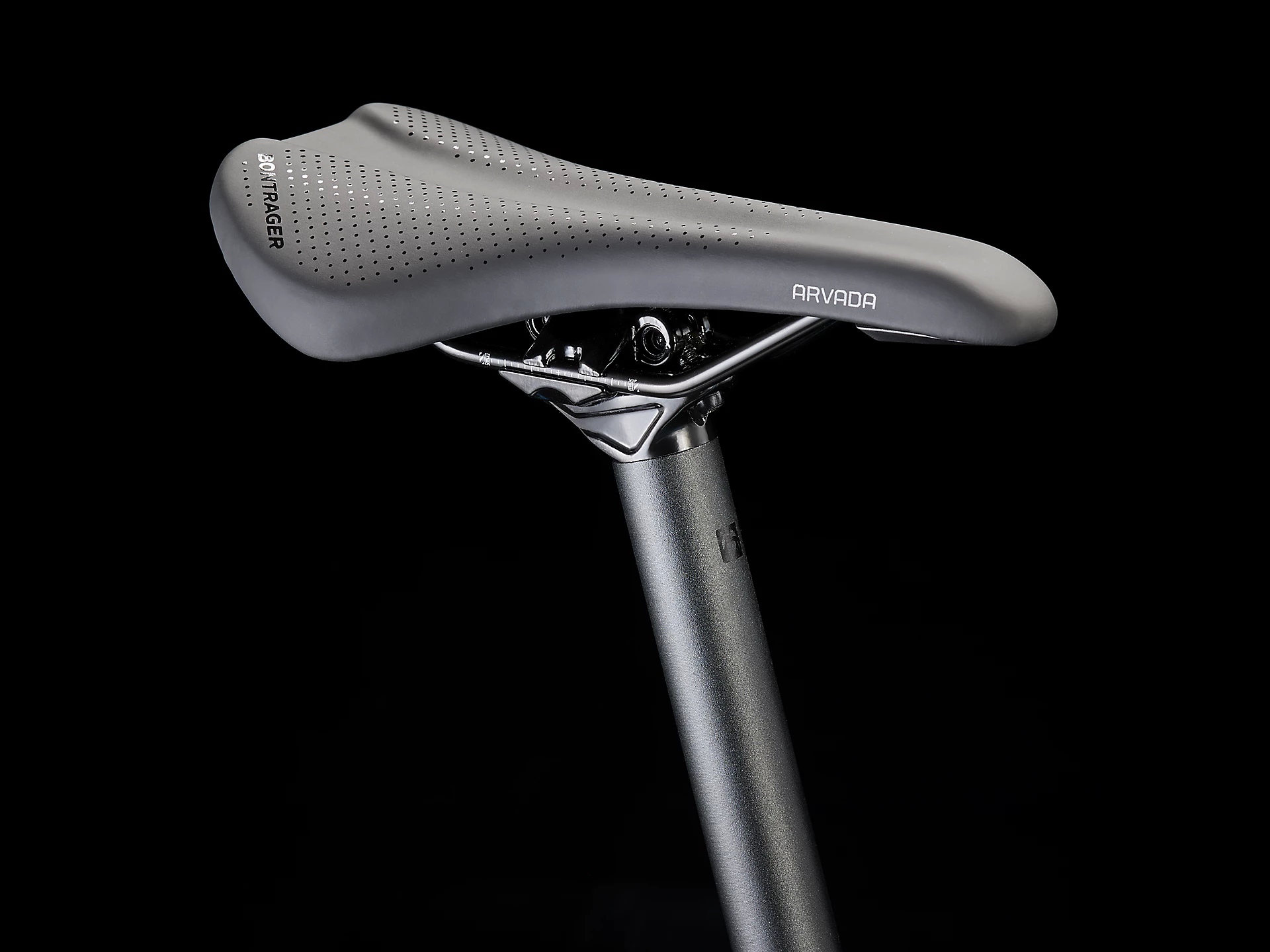

Sjedalo: Bontrager Arvada, steel rails, 138 mm width
Cijev sjedala: Bontrager alloy, 31.6 mm, 12 mm offset

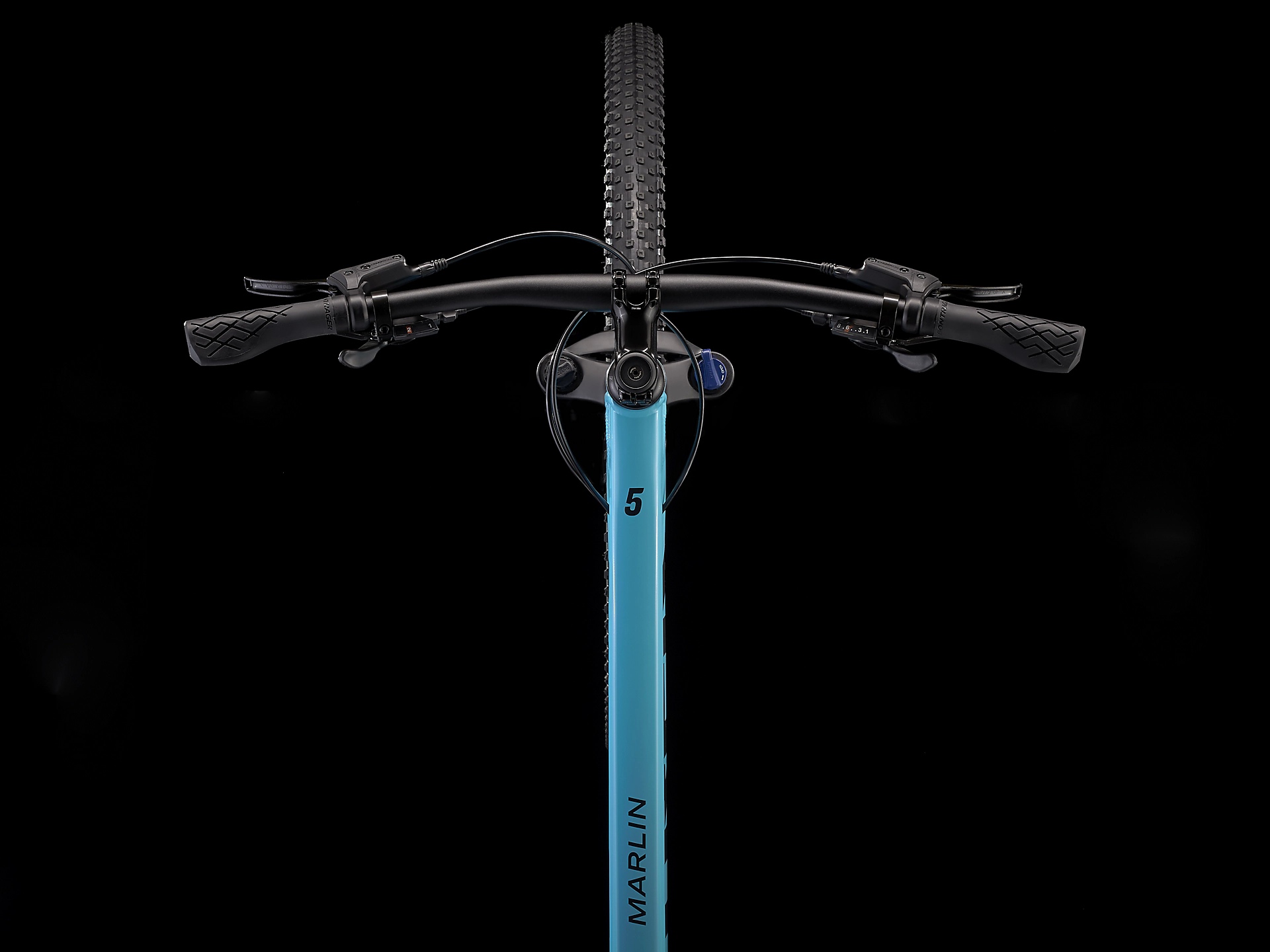

Kormilo: Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width (Size XXS & XS: 690 mm width)
Navlake kormila: Bontrager XR Endurance Comp
Lula kormila: Bontrager alloy, 31.8 mm, Blendr compatible, 7 degree
Garnitura vilice: Semi-integrated, 1-1/8″

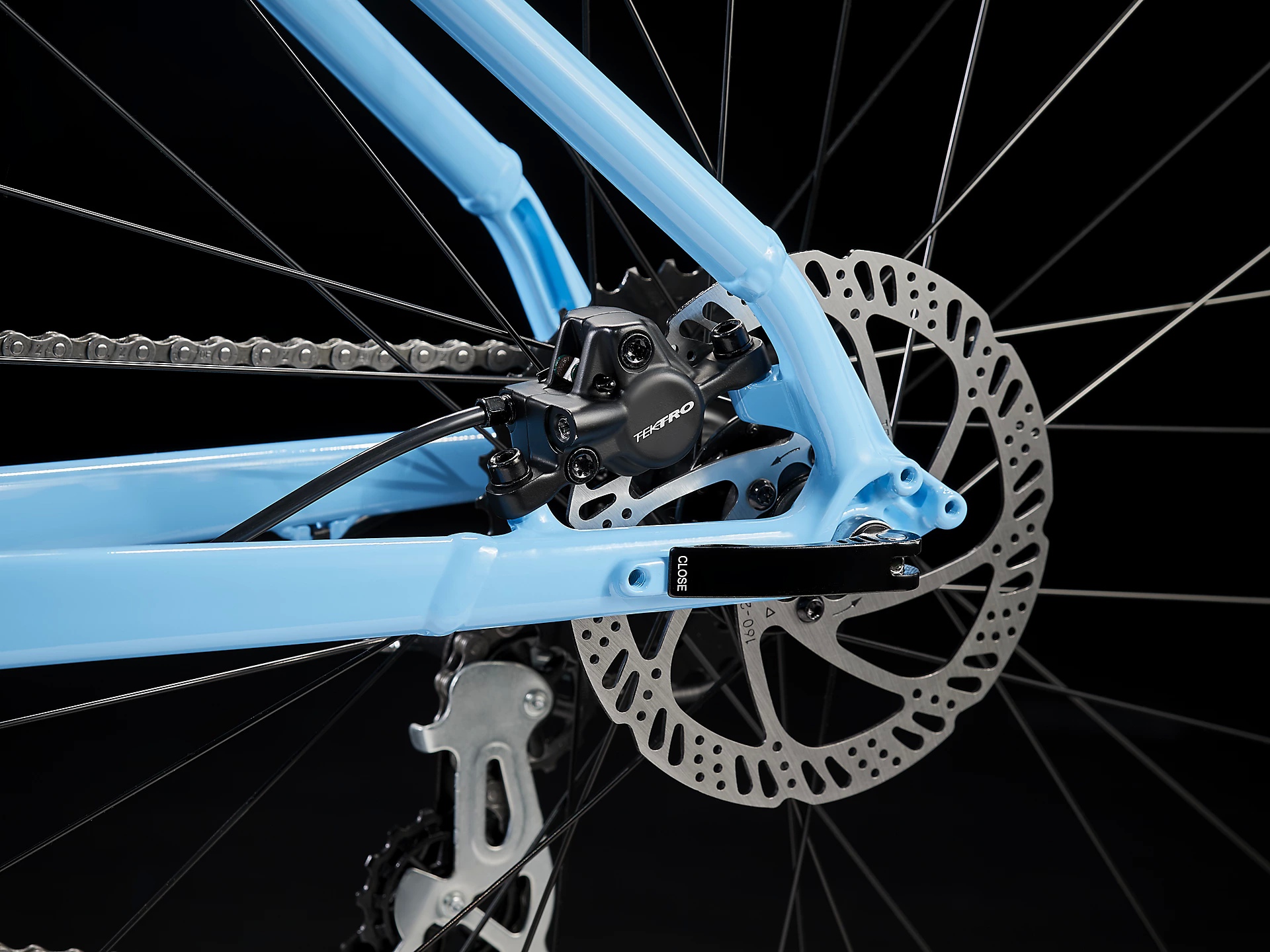

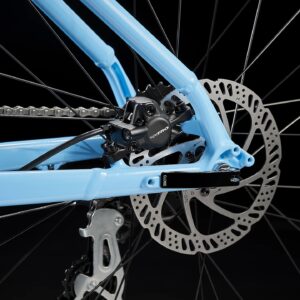

Kočnice: Tektro HD-M275 hydraulic disc
